Resistor
A resistor limits electrical current and reduces voltage in a circuit. Resistors can be assigned a resistor part.
Adding a Resistor
Right-click on the canvas in the Schematic View and select Resistor.
Locating a Resistor

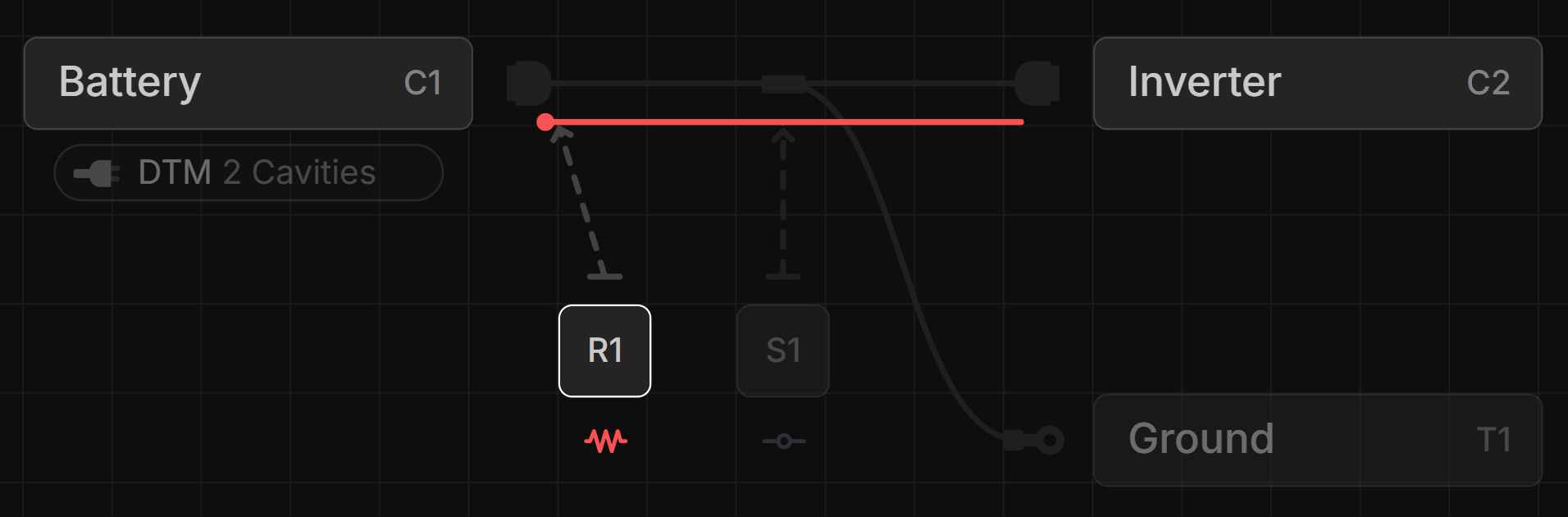

Resistors are automatically positioned at branch points based on the most efficient wiring path. An automatically placed resistor is shown with a dashed arrow line.

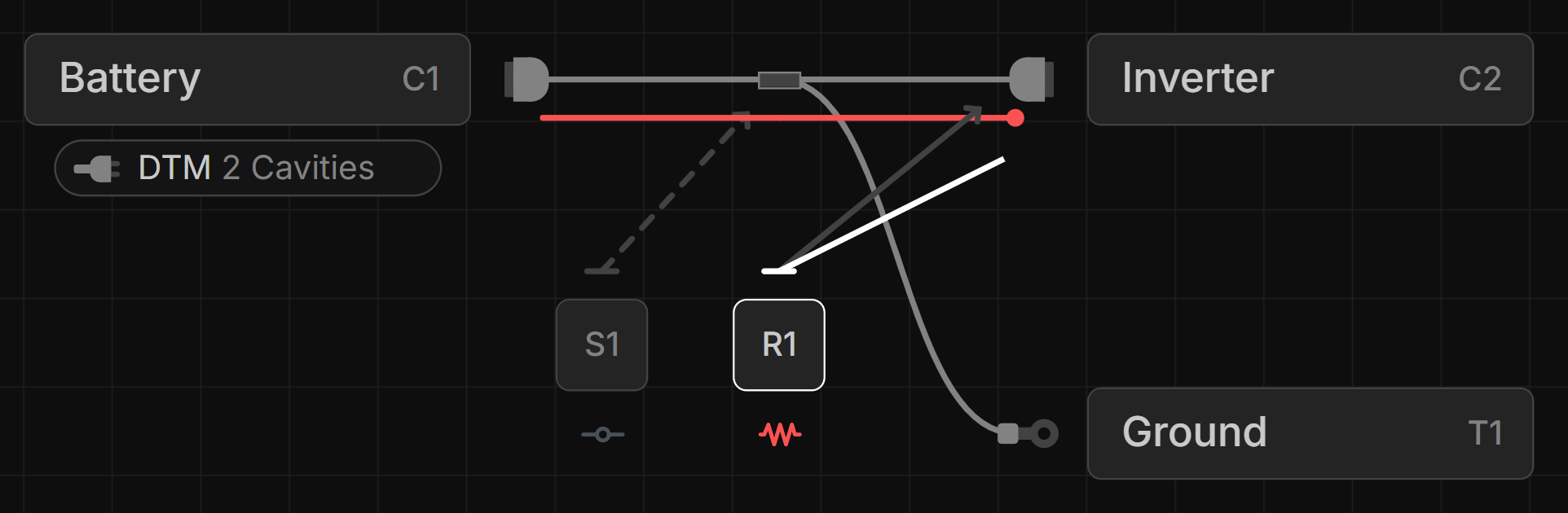

You can manually position a resistor by dragging its location handle in the Layout View to any branch point, connector, or terminal in the harness.
To reset a resistor to automatic placement, select its location line and press Delete.
