Device Part
A device is typically a physical component where connections start or end, and may contain multiple connections, such as an ECU (Electronic Control Unit) or a fuse box.
| Property | Description |
|---|---|
| Part Number | Unique identifier for the device part |
| Manufacturer | Company that produces the part |
| Description | Description of the device part |
| Color | Color of the device |
Assigning a Device Part
Right-click on the heading of a Group in the Schematic or Layout View and select the device part you want to assign.

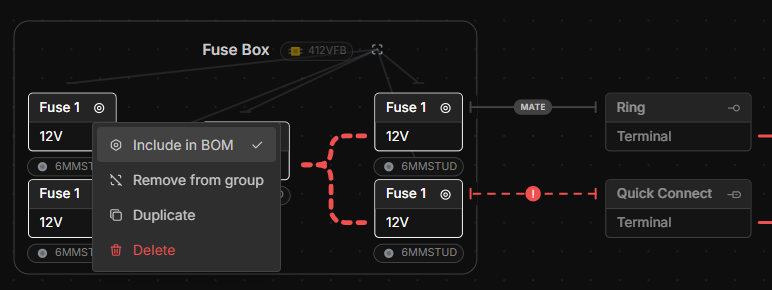

Hiding Parts from BOM
Generally you will not want the components inside a Device to be shown in the BOM. However you may want to assign parts to the components inside the group so that when you mate a connector or terminal it can validate that this is an appropriate connection. Select the components you wish to exclude from the BOM, right-click, and deselect Include in BOM.
