Car Harness

The following example shows a simplified car harness.

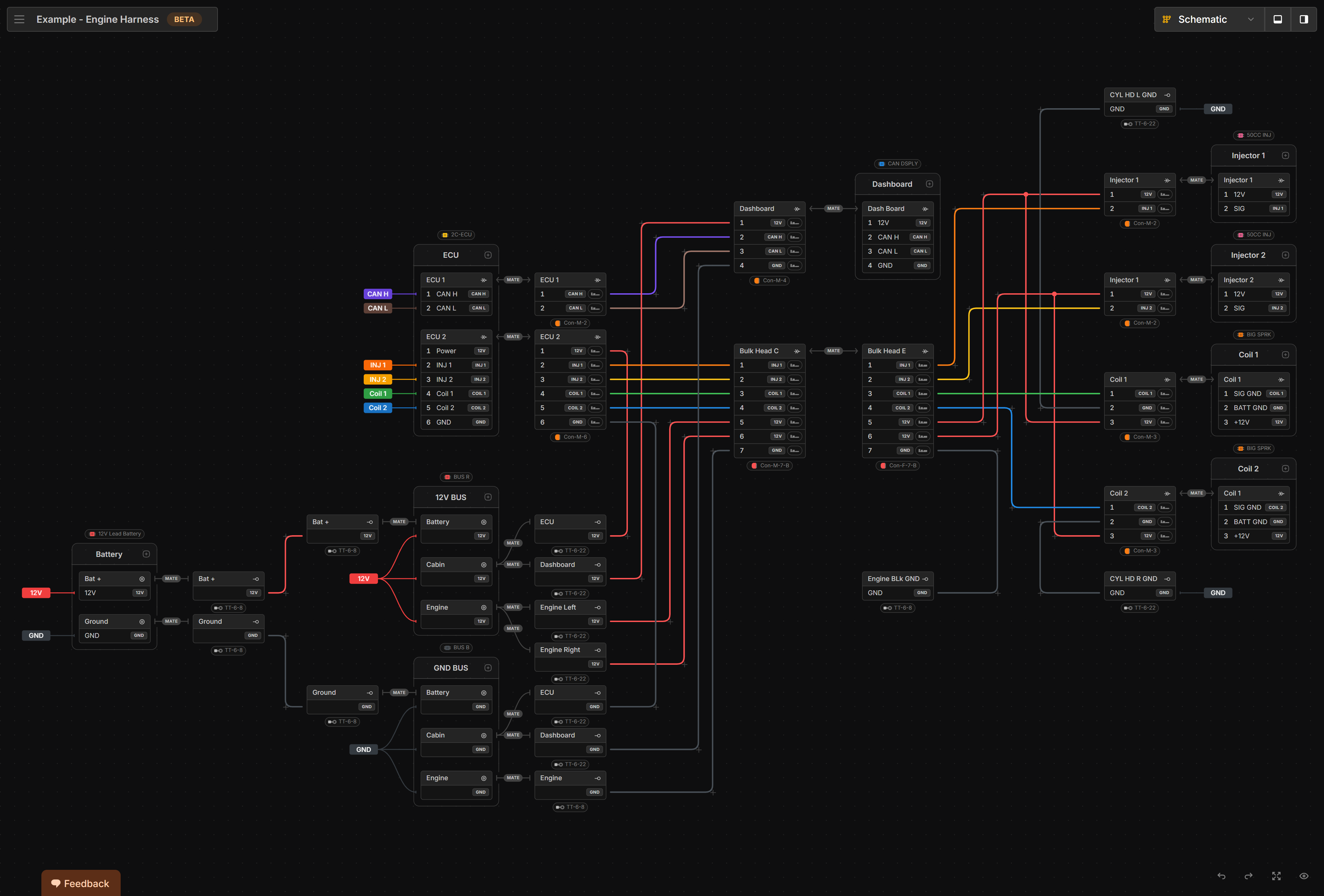

Schematic

The following demonstrates the correct use of Groups as Devices, Mating of Connectors, and Net Labels, to create a clear and organized schematic.

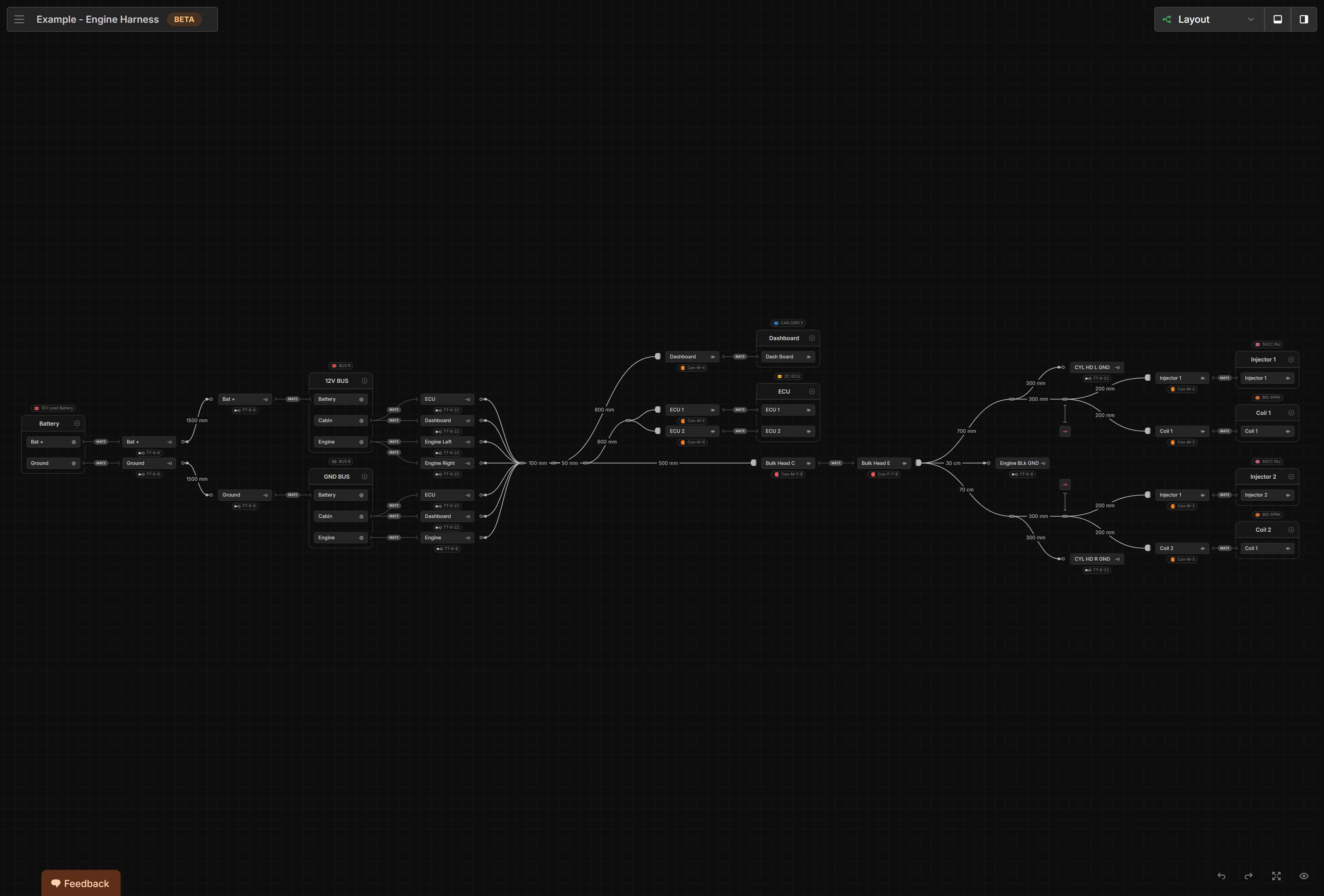

Layout

A fully routed car harness layout with Bundle Lengths, Devices, and Mating.

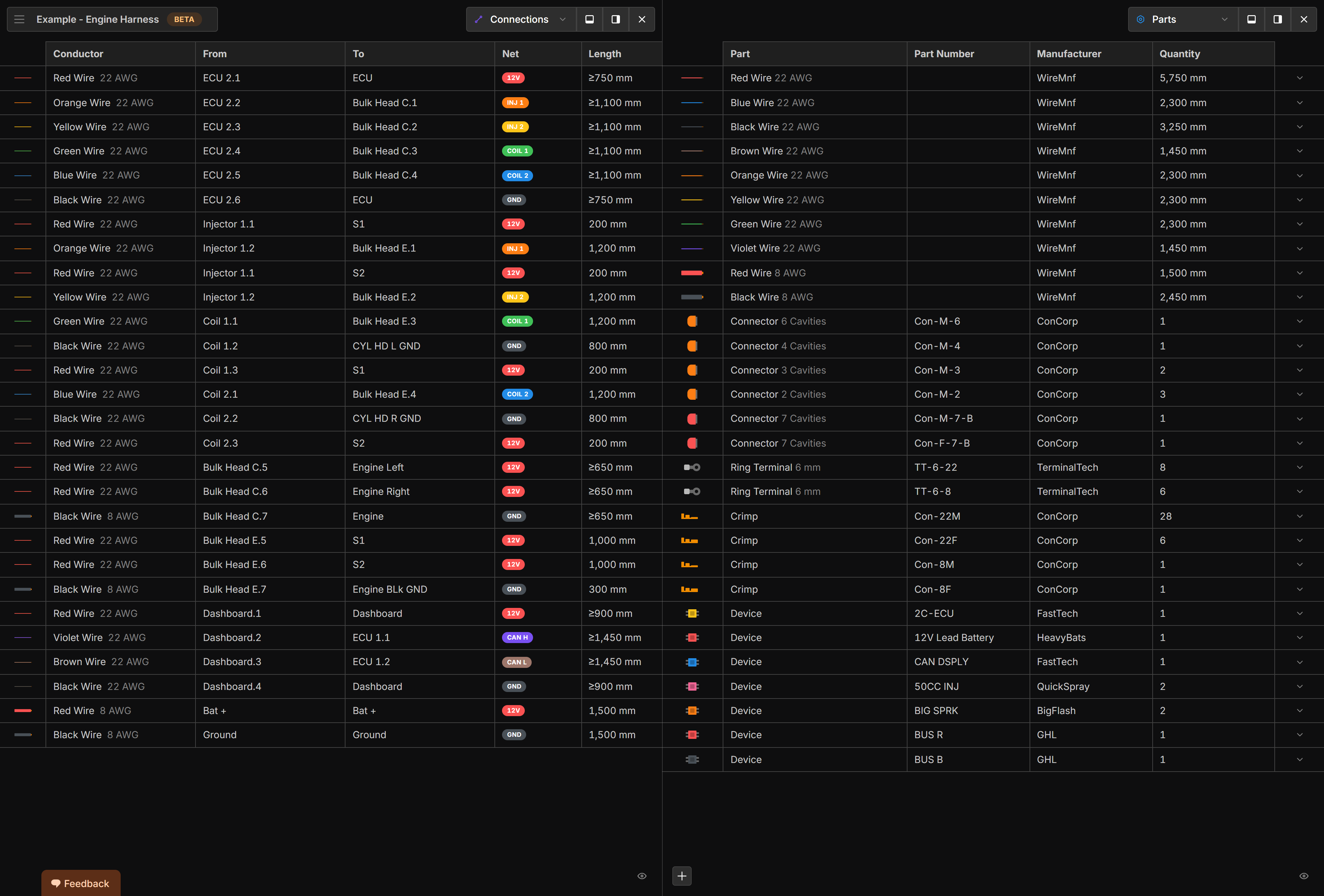

Connections and Parts

The Connections View shows corresponding Wire Parts from the Parts View, From and To generated from the labels entered into Components, Net Labels applied in the Schematic View, and wire lengths generated from Bundle Lengths in the Layout View.

The Parts View shows a fully populated list of all parts used in the harness including Devices, Connectors, Wire Parts, and Contacts.

Exports

The following are the exported files generated from the Car Harness example:

Schematic:

Layout:

Wiring Table:


Conductor,Part,Gauge,From ID,From Label,From Contact,To ID,To Label,To Contact,Length (mm)
"Red Wire","No part number","22 AWG","C10.1","ECU 2.1","Con-22M","TT11","ECU","","750"
"Orange Wire","No part number","22 AWG","C10.2","ECU 2.2","Con-22M","C15.1","Bulk Head C.1","Con-22M","1100"
"Yellow Wire","No part number","22 AWG","C10.3","ECU 2.3","Con-22M","C15.2","Bulk Head C.2","Con-22M","1100"
"Green Wire","No part number","22 AWG","C10.4","ECU 2.4","Con-22M","C15.3","Bulk Head C.3","Con-22M","1100"
"Blue Wire","No part number","22 AWG","C10.5","ECU 2.5","Con-22M","C15.4","Bulk Head C.4","Con-22M","1100"
"Black Wire","No part number","22 AWG","C10.6","ECU 2.6","Con-22M","TT20","ECU","","750"
"Red Wire","No part number","22 AWG","C11.1","Injector 1.1","Con-22M","S1","S1","","200"
"Orange Wire","No part number","22 AWG","C11.2","Injector 1.2","Con-22M","C16.1","Bulk Head E.1","Con-22F","1200"
"Red Wire","No part number","22 AWG","C12.1","Injector 1.1","Con-22M","S2","S2","","200"
"Yellow Wire","No part number","22 AWG","C12.2","Injector 1.2","Con-22M","C16.2","Bulk Head E.2","Con-22F","1200"
"Green Wire","No part number","22 AWG","C13.1","Coil 1.1","Con-22M","C16.3","Bulk Head E.3","Con-22F","1200"
"Black Wire","No part number","22 AWG","C13.2","Coil 1.2","Con-22M","TT15","CYL HD L GND","","800"
"Red Wire","No part number","22 AWG","C13.3","Coil 1.3","Con-22M","S1","S1","","200"
"Blue Wire","No part number","22 AWG","C14.1","Coil 2.1","Con-22M","C16.4","Bulk Head E.4","Con-22F","1200"
"Black Wire","No part number","22 AWG","C14.2","Coil 2.2","Con-22M","TT3","CYL HD R GND","","800"
"Red Wire","No part number","22 AWG","C14.3","Coil 2.3","Con-22M","S2","S2","","200"
"Red Wire","No part number","22 AWG","C15.5","Bulk Head C.5","Con-22M","TT13","Engine Left","","650"
"Red Wire","No part number","22 AWG","C15.6","Bulk Head C.6","Con-22M","TT14","Engine Right","","650"
"Black Wire","No part number","8 AWG","C15.7","Bulk Head C.7","Con-8M","TT22","Engine","","650"
"Red Wire","No part number","22 AWG","C16.5","Bulk Head E.5","Con-22F","S1","S1","","1000"
"Red Wire","No part number","22 AWG","C16.6","Bulk Head E.6","Con-22F","S2","S2","","1000"
"Black Wire","No part number","8 AWG","C16.7","Bulk Head E.7","Con-8F","TT4","Engine BLk GND","","300"
"Red Wire","No part number","22 AWG","C8.1","Dashboard.1","Con-22M","TT12","Dashboard","","900"
"Violet Wire","No part number","22 AWG","C8.2","Dashboard.2","Con-22M","C9.1","ECU 1.1","Con-22M","1450"
"Brown Wire","No part number","22 AWG","C8.3","Dashboard.3","Con-22M","C9.2","ECU 1.2","Con-22M","1450"
"Black Wire","No part number","22 AWG","C8.4","Dashboard.4","Con-22M","TT21","Dashboard","","900"
"Red Wire","No part number","8 AWG","TT10","Bat +","","TT6","Bat +","","1500"
"Black Wire","No part number","8 AWG","TT19","Ground","","TT5","Ground","","1500"

BOM:


Part,Details,Part Number,Manufacturer,Quantity,Description
"Connector","6 Cavities","Con-M-6","ConCorp","1",""
"Connector","4 Cavities","Con-M-4","ConCorp","1",""
"Connector","3 Cavities","Con-M-3","ConCorp","2",""
"Connector","2 Cavities","Con-M-2","ConCorp","3",""
"Connector","7 Cavities","Con-M-7-B","ConCorp","1",""
"Connector","7 Cavities","Con-F-7-B","ConCorp","1",""
"Ring Terminal","6 mm","TT-6-22","TerminalTech","8",""
"Ring Terminal","6 mm","TT-6-8","TerminalTech","6",""
"Crimp","","Con-22M","ConCorp","28",""
"Crimp","","Con-22F","ConCorp","6",""
"Crimp","","Con-8M","ConCorp","1",""
"Crimp","","Con-8F","ConCorp","1",""
"Red Wire","22 AWG","Not specified","WireMnf","5750 mm",""
"Blue Wire","22 AWG","Not specified","WireMnf","2300 mm",""
"Black Wire","22 AWG","Not specified","WireMnf","3250 mm",""
"Brown Wire","22 AWG","Not specified","WireMnf","1450 mm",""
"Orange Wire","22 AWG","Not specified","WireMnf","2300 mm",""
"Yellow Wire","22 AWG","Not specified","WireMnf","2300 mm",""
"Green Wire","22 AWG","Not specified","WireMnf","2300 mm",""
"Violet Wire","22 AWG","Not specified","WireMnf","1450 mm",""
"Red Wire","8 AWG","Not specified","WireMnf","1500 mm",""
"Black Wire","8 AWG","Not specified","WireMnf","2450 mm",""
"Device","","2C-ECU","FastTech","1","ECU"
"Device","","12V Lead Battery","HeavyBats","1","Battery"
"Device","","CAN DSPLY","FastTech","1","Dashboard"
"Device","","50CC INJ","QuickSpray","2","Injector 1"
"Device","","BIG SPRK","BigFlash","2","Coil 1"
"Device","","BUS R","GHL","1","12V BUS"
"Device","","BUS B","GHL","1","12V BUS"
