Splice Part
A joint that connects two or more wires both electrically and mechanically.
| Property | Description |
|---|---|
| Part Number | Unique identifier for the splice part |
| Internal Part No. | Your own identifier for the part, e.g. a stores or ERP number. Read more… |
| Manufacturer | Company that produces the part |
| Description | Description of the splice part |
| URL | Link to datasheet or manufacturer website |
| Price | Unit price of part |
| Color | Color of the splice housing or insulation |
| Min Gauge | Minimum wire size supported |
| Max Gauge | Maximum wire size supported |
For size, you can enter the following units (set the default unit under Main Menu → Settings → Harness settings):
mm- Milimetercm- Centimeterm- Meterin"- Inchft'- Footyd- Yardother- You can enter strings for other usecase i.e. #8 for US Screw Gauge
Assigning to a Component

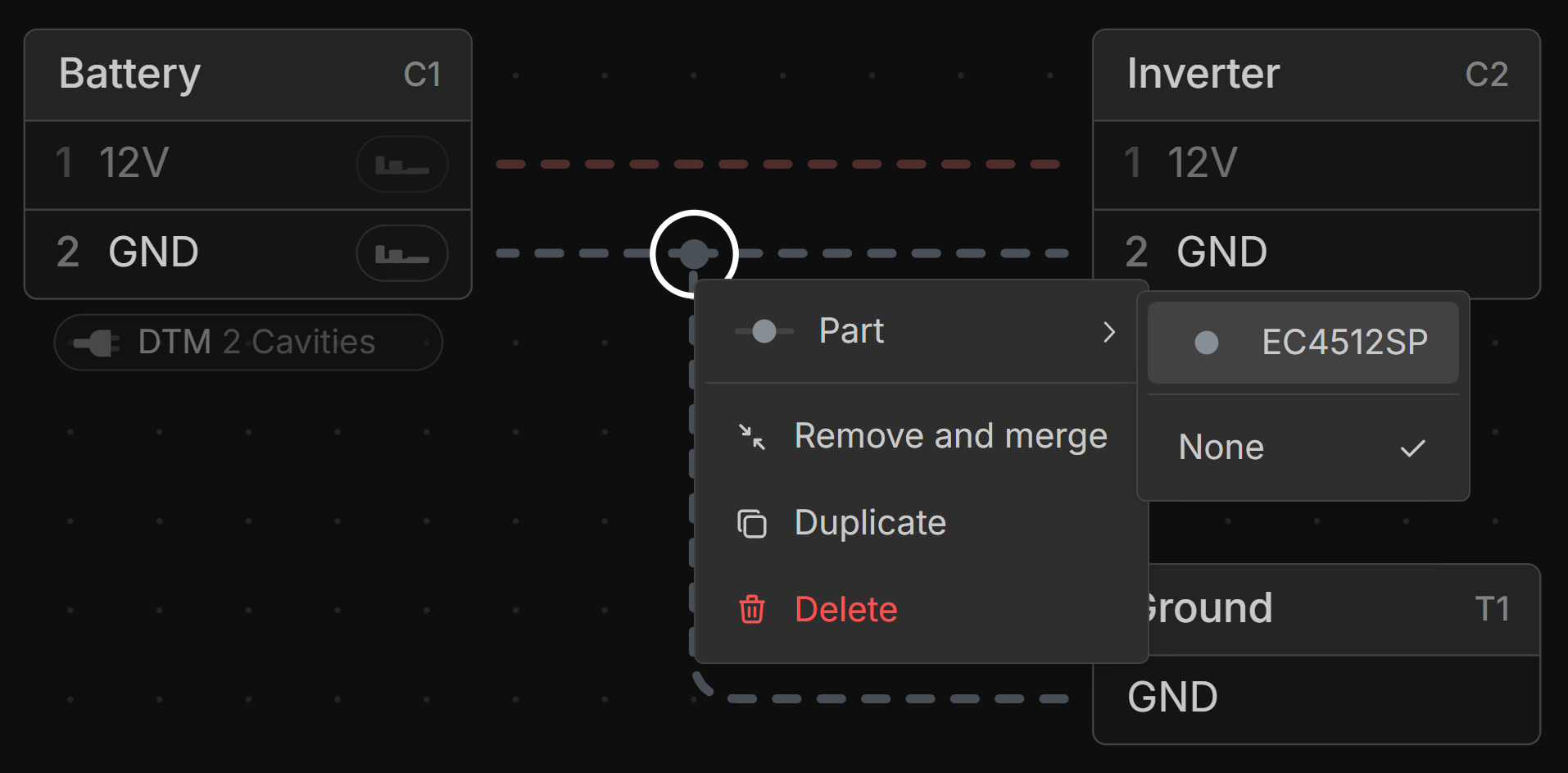

See Assigning Parts
Configurations
Like a Connector Part, each splice part has a Default Configuration and can have more named configurations. A configuration lists the Boots and Coverings that go with the part, any number of each, and they are applied to every component using that configuration. For example, add a “With heat shrink” configuration and choose it for the splices that need heat shrink.
Configurations are edited in the part’s details in the same way as connector configurations. When you assign the part, the dropdown lists each of its configurations. See Configurations.
