Resistor Part
A passive electrical component that limits current flow and produces a specified voltage drop.
| Property | Description |
|---|---|
| Part Number | Unique identifier for the resistor part |
| Internal Part No. | Your own identifier for the part, e.g. a stores or ERP number. Read more… |
| Manufacturer | Company that produces the part |
| Description | Description of the resistor part |
| URL | Link to datasheet or manufacturer website |
| Price | Unit price of part |
| Resistance | Resistance value in ohms (mΩ, Ω, kΩ, or MΩ) |
| Power | Power dissipation in watts (mW, W, or kW) |

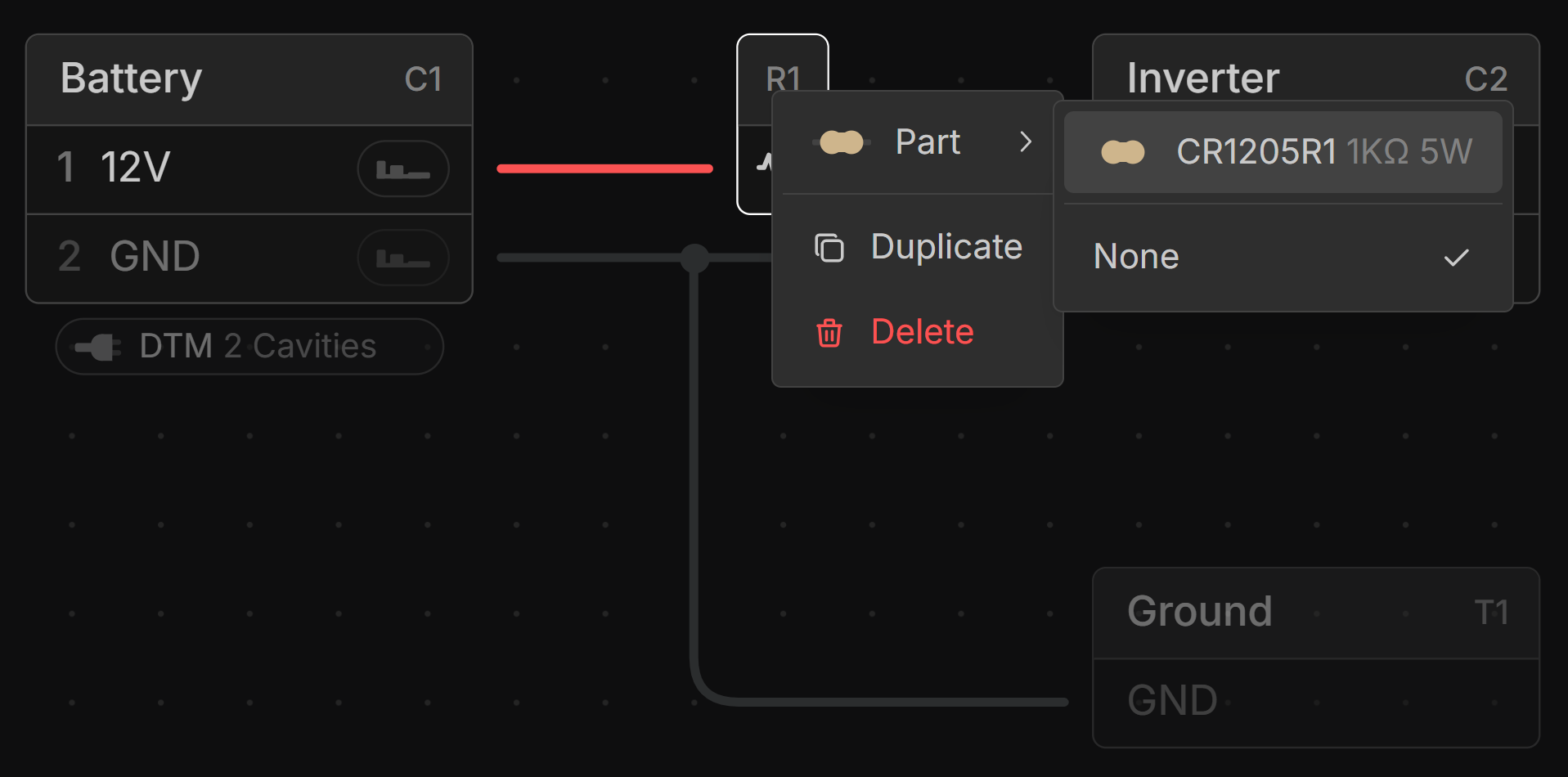

Assigning to a Component
See Assigning Parts
Configurations
Like a Connector Part, each resistor part has a Default Configuration and can have more named configurations. A configuration lists the Boots and Coverings that go with the part, any number of each, and they are applied to every component using that configuration. For example, add a “With heat shrink” configuration and choose it for the resistors that need heat shrink.
Configurations are edited in the part’s details in the same way as connector configurations. When you assign the part, the dropdown lists each of its configurations. See Configurations.
