Boot Part
A flexible protective sleeve fitted over a Connector or Branch Point for strain relief, environmental sealing, and abrasion resistance.
| Property | Description |
|---|---|
| Part Number | Unique identifier for the Boot Part |
| Manufacturer | Company that produces the part |
| Description | Description of the Boot Part |
| URL | Link to datasheet or manufacturer website |
| Color | Color of the Boot Part |
Assigning a Boot Part

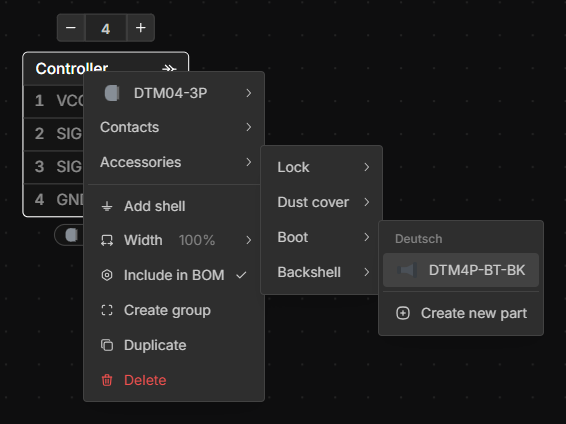

right-click on a connector in the Schematic or Layout View, click Accessories → Boot, and select the boot part you want to assign.
