Cable Part
A bundled assembly of one or more conductors with insulation and protective layers, used to transmit power or signals between components. A cable can have a shield assigned to it.
| Property | Description |
|---|---|
| Part Number | Unique identifier for the cable part |
| Internal Part No. | Your own identifier for the part, e.g. a stores or ERP number. Read more… |
| Manufacturer | Name of the company that produces the part |
| Description | Description of the cable part |
| URL | Link to datasheet or manufacturer website |
| Price | Unit price of part per set length unit |
| Color | Color of the cable’s outer jacket |
| Jacket | Thickness of the outer jacket. Leave it empty to use the estimate from the size of the cores, shown as the placeholder. Read more… |
| Diameter | Overall diameter of the cable. Leave it empty to use the diameter calculated by packing the cores inside the jacket, shown as the placeholder, or enter the manufacturer’s figure |
| Cores | Total number of individual conductors inside the cable, from 1 to 64. The new count applies when you press Enter or leave the field |
| Shielded | Indicates whether the cable has a shield (beside Cores) |
| Core → Color | Color of the insulation for each core |
| Core → Stripe | Color of the stripe for each core |
| Core → Gauge | Cross-sectional size of the core conductor |
| Core → Insulation | Thickness of the core’s insulation. Leave it empty to use the estimate from the core’s gauge, shown as the placeholder |
| Core → Twisted | Whether the core is twisted together with the next core. Consecutive twisted cores form a twisted pair (or triple), which is applied to every cable that uses the part |
For gauge, you can enter the following units (set the default unit under Main Menu → Settings → Harness settings):
mm²- Millimeters Squared (Metric)AWG- American Wire Gaugecmil- Circular Milkmil- Kilo Circular Mil
Jacket, Diameter and Insulation are small dimensions: a plain number is read in mm, or in when the harness’s default length unit is imperial. You can also type the unit, such as 6.2 mm.
Cores
The cores are listed below the part’s other details, one row per core, with columns for Color, Stripe, Gauge and Insulation. Press Enter in a core’s Gauge or Insulation to move to the same field on the next core (shift Enter for the previous one), so you can type a whole column in one go.
Cross Section
A cable part shows its Cross Section below the part image in its details: the cores packed inside the shield (when Shielded) and the jacket, drawn to scale in the part’s colours, with the overall diameter. Twisted cores are packed together. If any core has no gauge, it is sized as 0.5 mm², drawn with a dashed outline, and the diameter is marked (estimated).
A Diameter smaller than the packed cores draws them shrunk to fit inside the jacket; a larger one leaves more space around them. The same sizes are used for the cable in bundle cross sections.

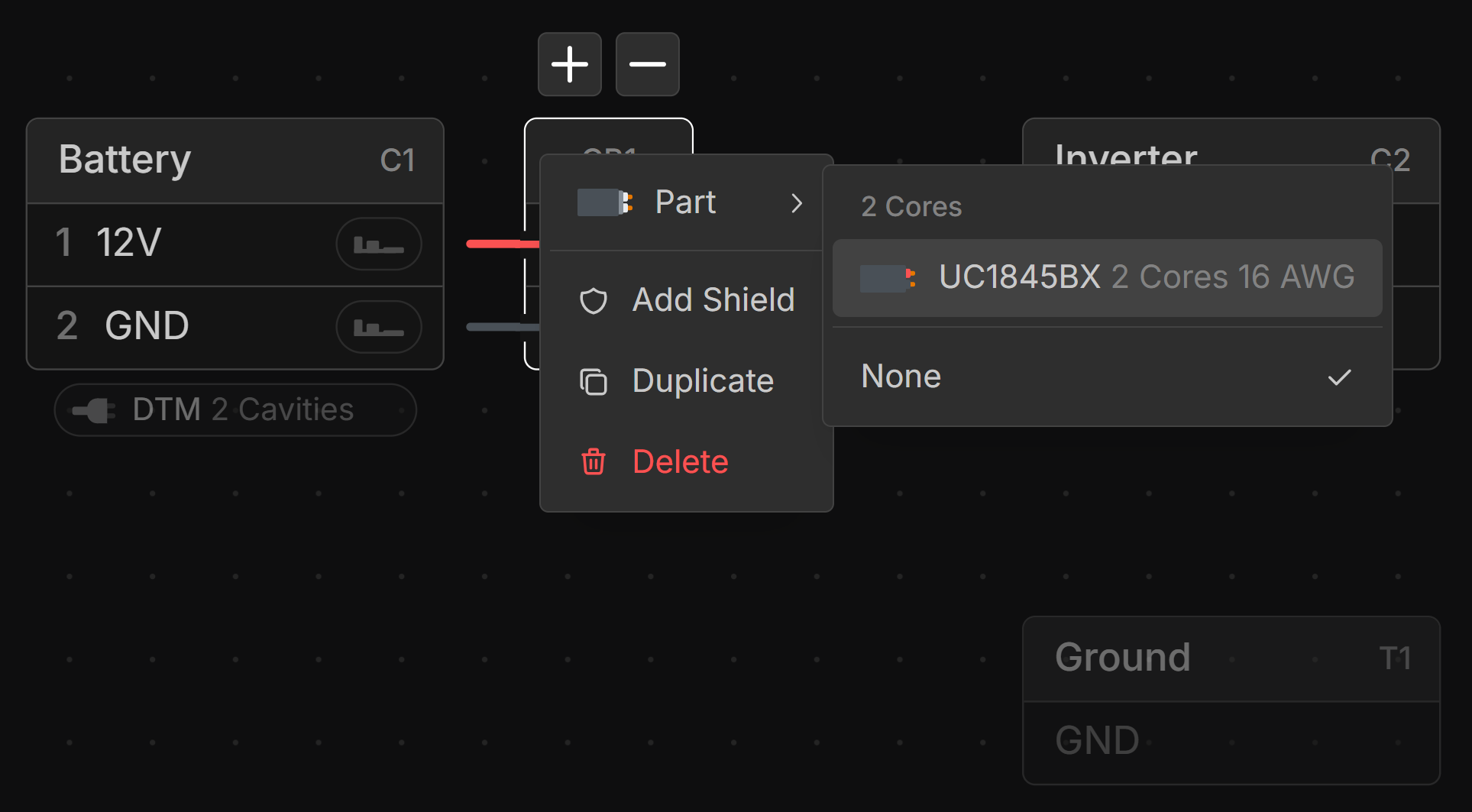

Assigning to a Component
See Assigning Parts
