Diode Part
A part that allows current to flow in only one direction and blocks it in the opposite direction.
| Property | Description |
|---|---|
| Part Number | Unique identifier for the diode part |
| Manufacturer | Company that produces the part |
| Description | Description of the diode part |
| VBR | Reverse breakdown voltage, measured in volts (mV, V, or kV) |
| IF | Forward current rating, measured in amps (mA, A, or kA) |
Assigning a Diode Part

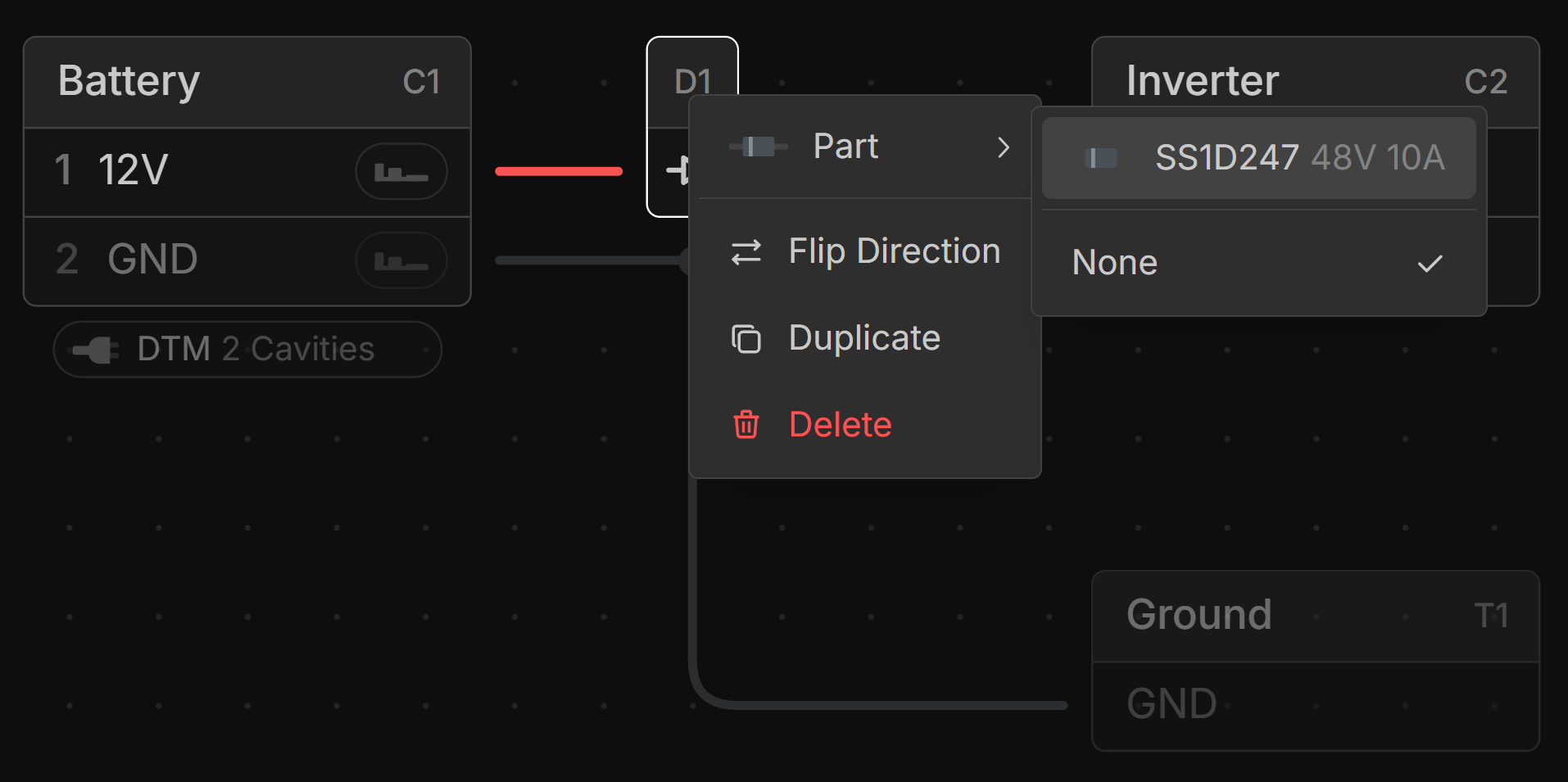

Right-click a diode in the Schematic or Layout View and select the desired Diode Part to assign.
