Backshell Part
A rigid or semi-rigid enclosure fitted to the rear of a connector for cable termination, strain relief, shielding, and environmental protection.
| Property | Description |
|---|---|
| Part Number | Unique identifier for the Backshell Part |
| Manufacturer | Company that produces the part |
| Description | Description of the Backshell Part |
| Color | Color of the Backshell Part |
Assigning a Backshell Part

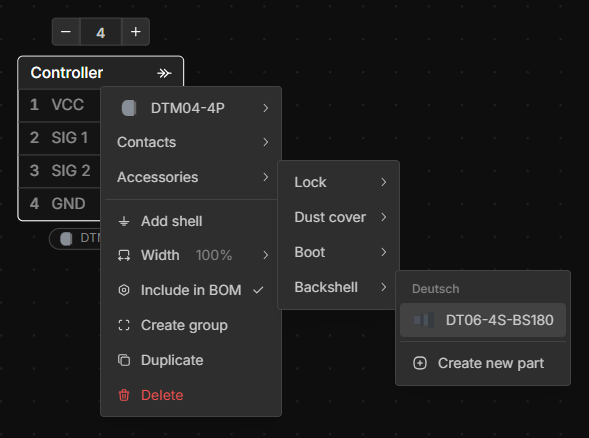

Right-click on a connector in the Schematic or Layout View, click Accessories → Backshell, and select the backshell part you want to assign.
