Terminal

A terminal is a single electrical connection point and serves as a termination point in the harness. Each terminal can be assigned a Terminal Part.

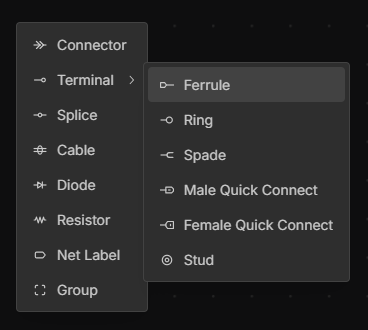

Adding a Terminal

Right-click on the canvas in the Schematic or Layout view and select the terminal type from the submenu.

Editing Terminal Labels

Double-click any terminal label to edit it.

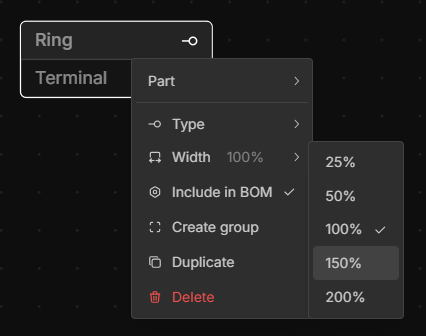

Adjust View Width of Terminal

If the name or cavity labels are too long, right-click the terminal, select Width, and set the desired width.
