Branch Point

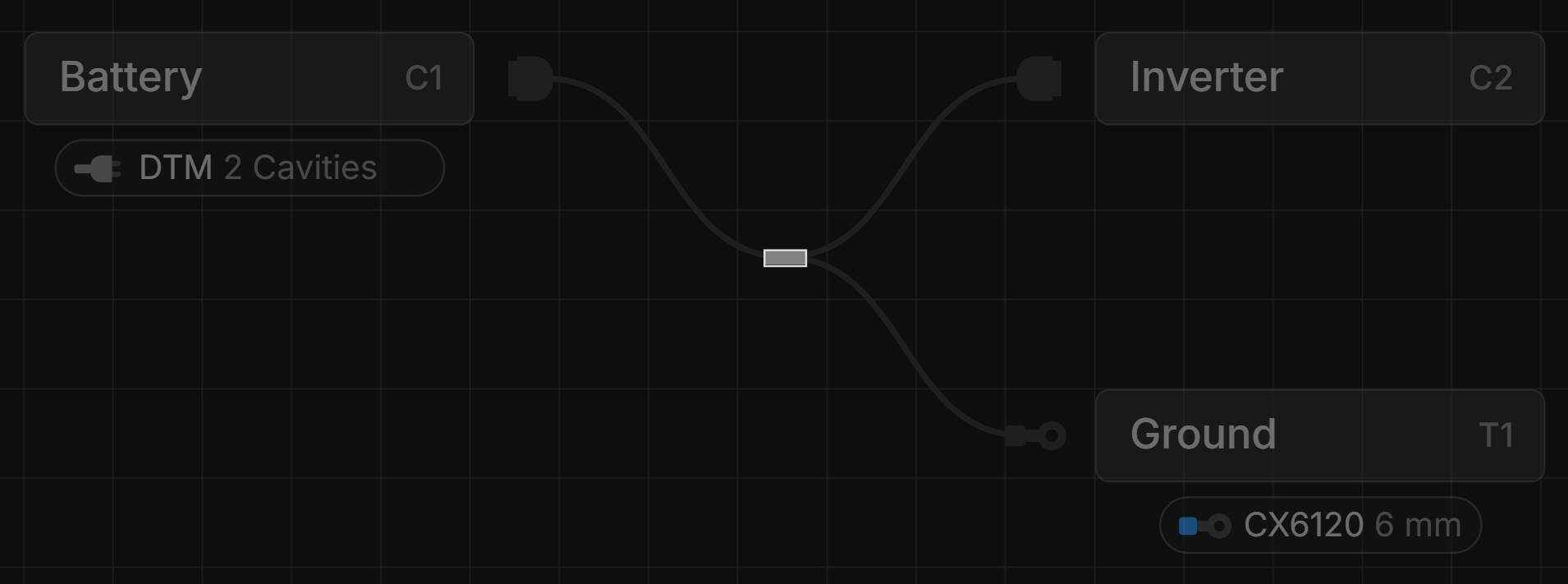

A branch point is used to join multiple bundles together.
Inline components that are located within the harness—such as splices, diodes, and resistors—can also be positioned at branch points.
Branch points can only be added in the Layout View.
Adding Branch Points
There are several ways to add branch points to your harness:
Add a New Branch Point
Right-click on the canvas and select Branch Point. This will add a branch point with no connected bundles. Drag from the connection point of a connector, terminal, or another branch point to create a bundle to the new branch point.
Add a Branch Point to a Bundle
Right-click on a bundle and select Add Branch Point. This splits the bundle into two, with each segment connecting to the new branch point.

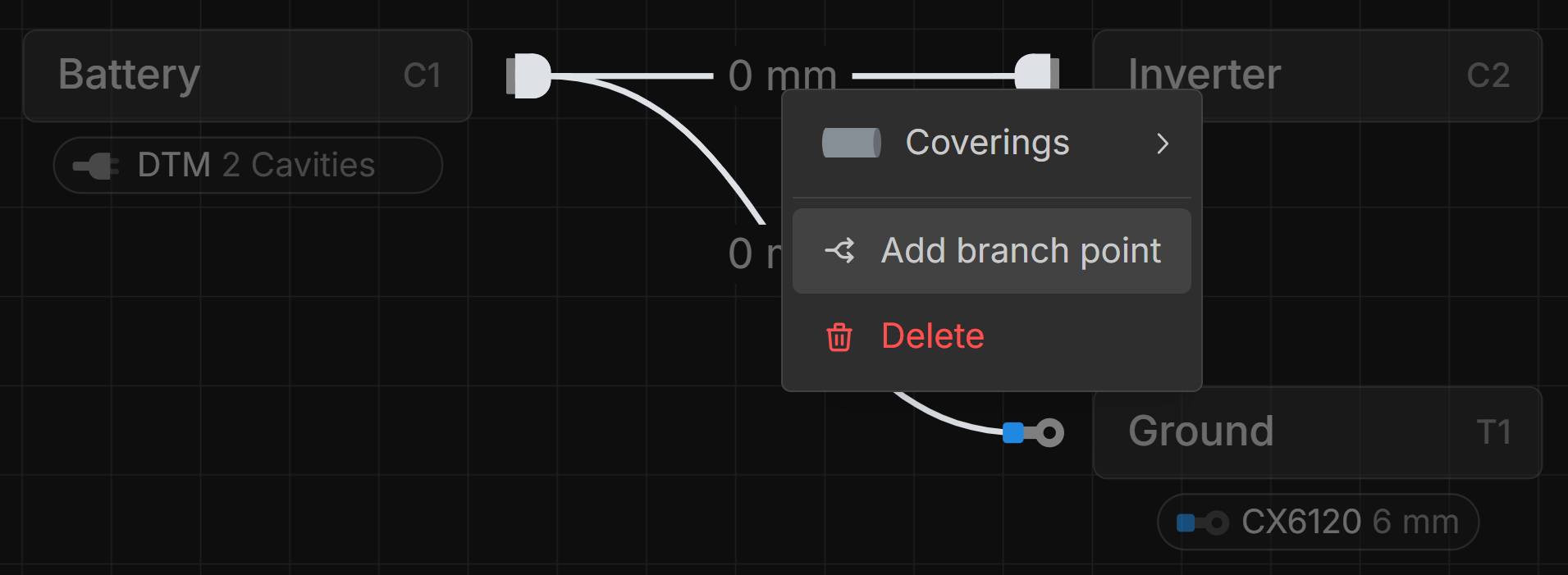

Join Multiple Bundles with a Branch Point
Select multiple bundles, right-click, and choose Add Branch Point. The selected bundles will be merged at a new branch point.
Positioning Branch Points
Click and drag a branch point to position it on the canvas.
Merging Branch Points
To merge two branch points, drag one onto the other.
