Lock Part
A lock part, also known as a secondary lock or wedge lock, is used to prevent contacts from backing out after insertion.
| Property | Description |
|---|---|
| Part Number | Unique identifier for the lock part |
| Manufacturer | Company that produces the part |
| Description | Description of the lock part |
| Color | Color of the lock part |
Assigning a Lock Part

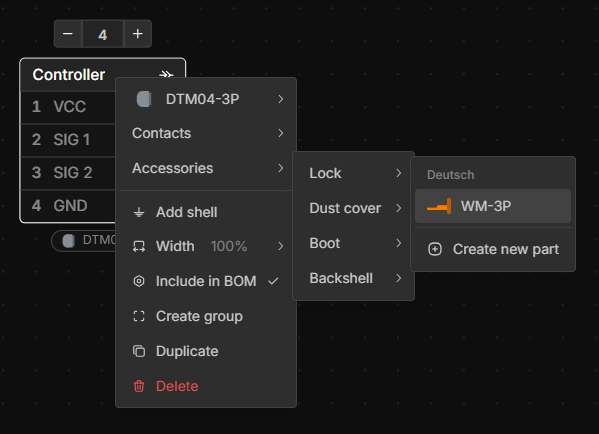

Right-click on a connector in the Schematic or Layout View, click Accessories → Lock, and select the lock part you want to assign.
