Resistor Part
A passive electrical component that limits current flow and produces a specified voltage drop.
| Property | Description |
|---|---|
| Part Number | Unique identifier for the resistor part |
| Manufacturer | Company that produces the part |
| Description | Description of the resistor part |
| Resistance | Resistance value in ohms (mΩ, Ω, kΩ, or MΩ) |
| Power | Power dissipation in watts (mW, W, or kW) |

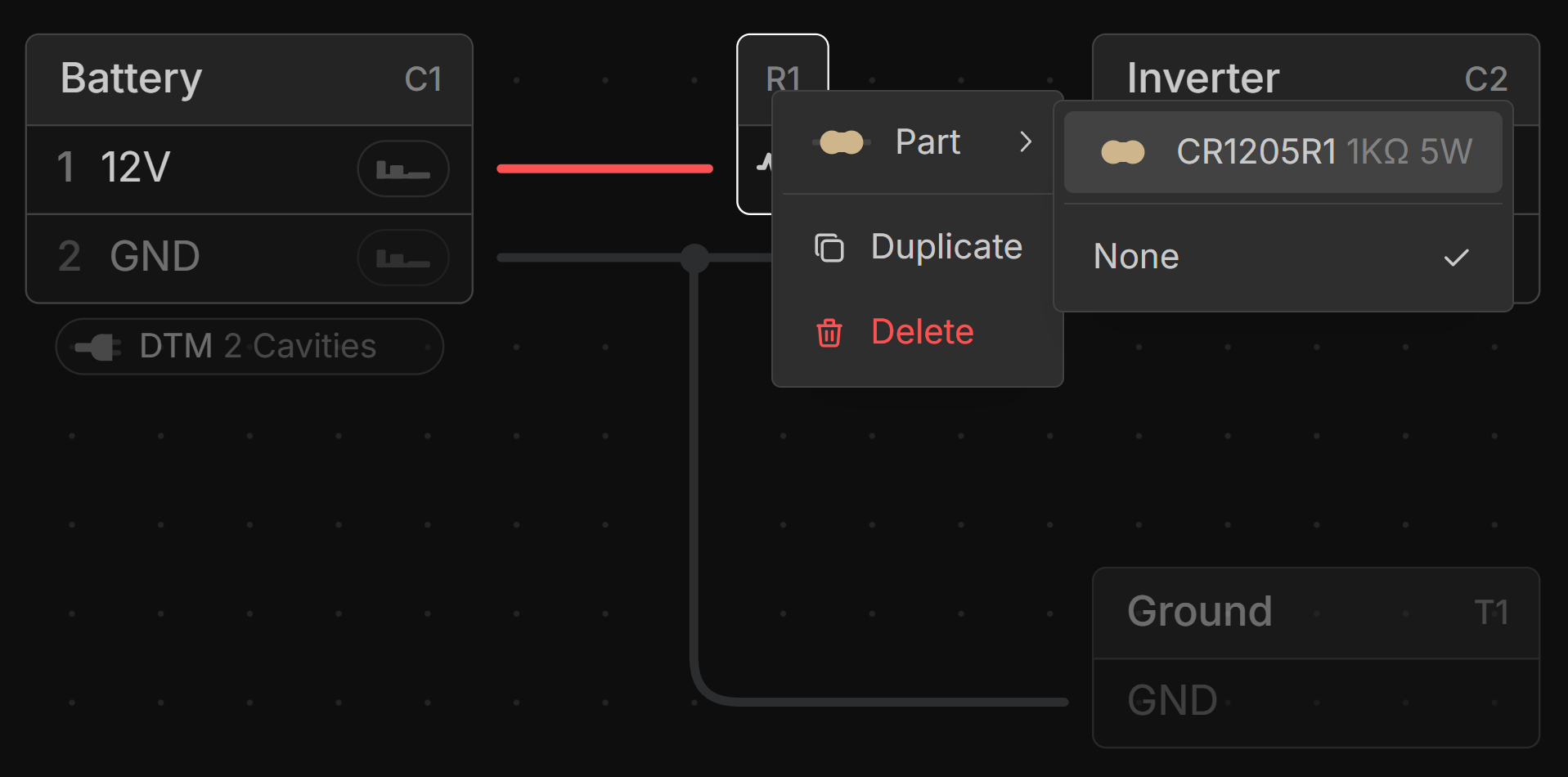

Assigning a Resistor Part
Right-click a resistor in the Schematic or Layout View and select the desired Resistor Part to assign.
