Twisted Wires

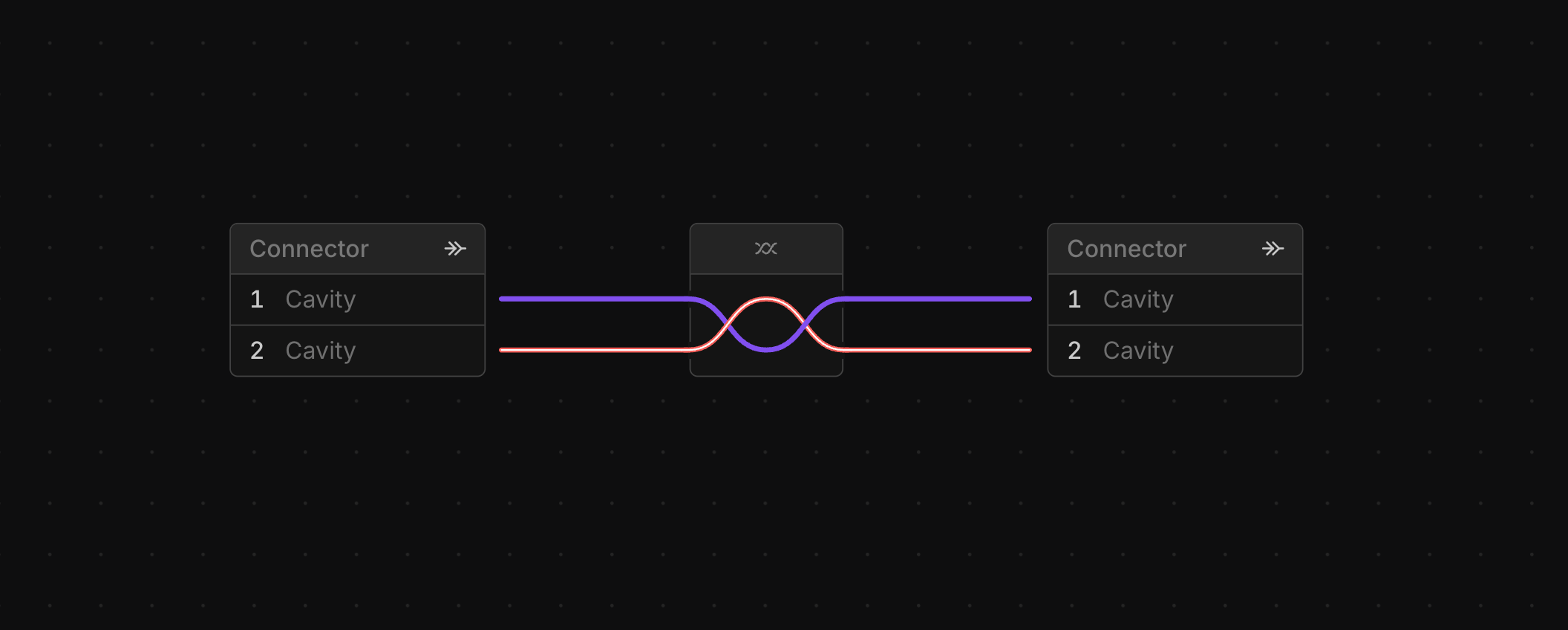

Twisted wires are a group of wires that should be twisted together when the harness is assembled. Usually this will be a twisted pair of two wires.

You can see which wires are twisted together in the Connections View by viewing the Twisted With column.

Adding a Twisted Wires

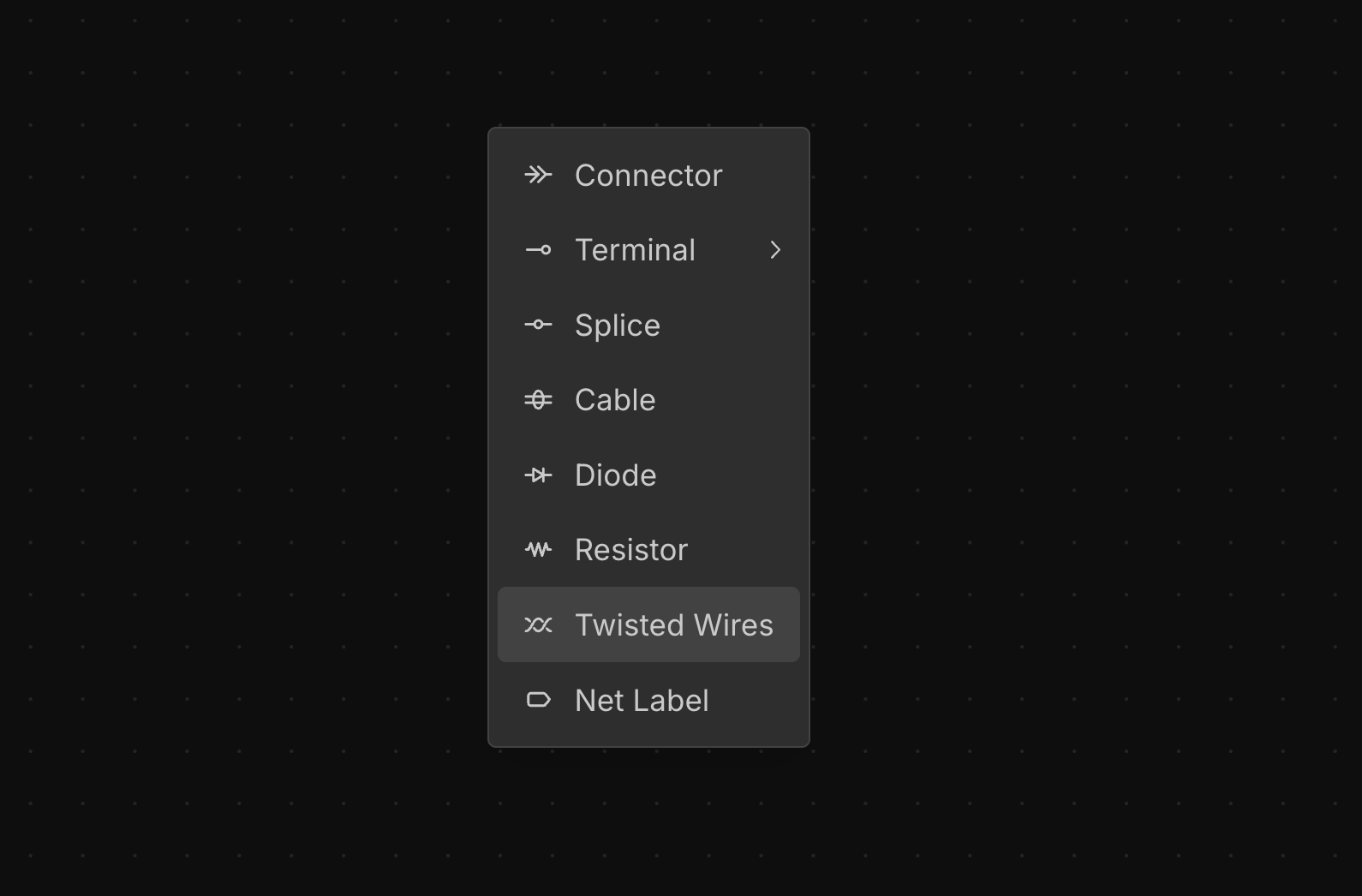

Right-click on the canvas in the Schematic View and select Twisted Wires to add a new twisted wire group.

Twist Existing Wires Together

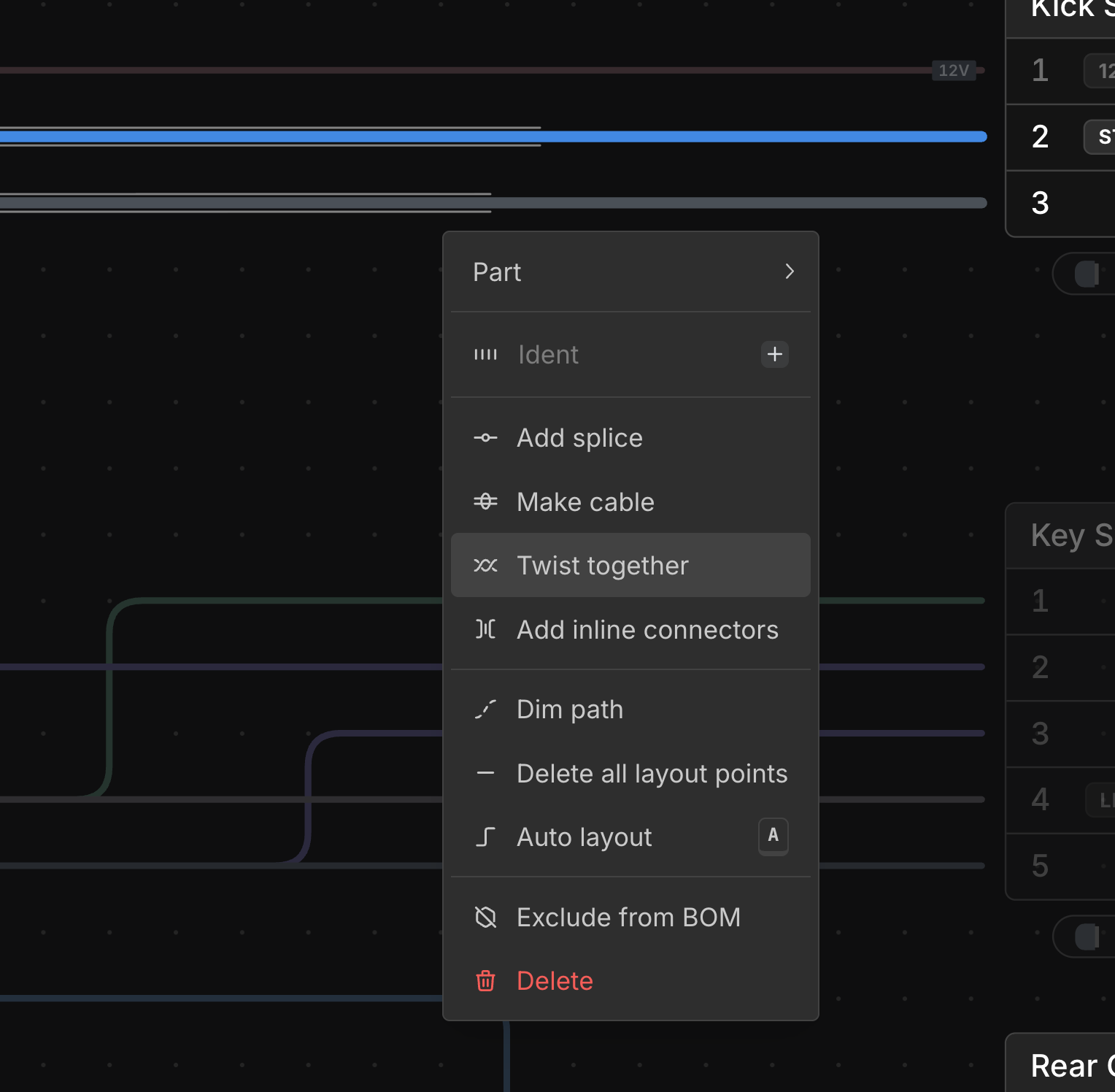

Select multiple wires, right-click, and choose Twist together. This creates a twisted wire group with the selected wires.
